Criostato OptistatDN
Ubicazione
Descrizione

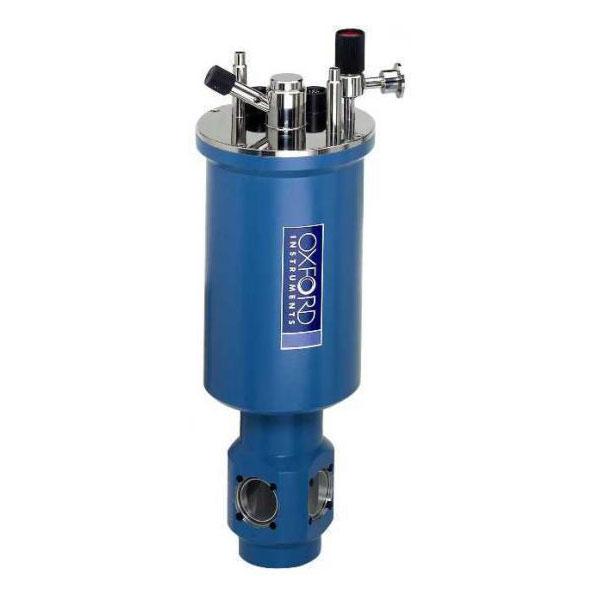

Nitrogen bath top loading cryostat. Sample cooled in a static exchange gas.
Simple height and rotate adjust including sample rod and double optical sample holder (height adjust range 32 mm, positioning accuracy 0.5 mm; rotate adjust range 360°, positioning accuracy 1°).
Cell holder for cuvettes up to 10 mm path length. Holder for solids.
Five optical access ports (4 radial and 1 axial) for demountable windows.
Temperature range 77-300 K, Temperature stability ±0.1 K using an ITC controller.
1.2 liter nitrogen reservoir.
Cool down time from room temperature ≃20 min, Liquid nitrogen hold time ≥15 hr.
Temperature controller: Sensor range 50 to 500 K, Temperature resolution 0.1 K.
Dati acquisizione
Responsabili
Documenti
Accesso
Da tutto il personale
